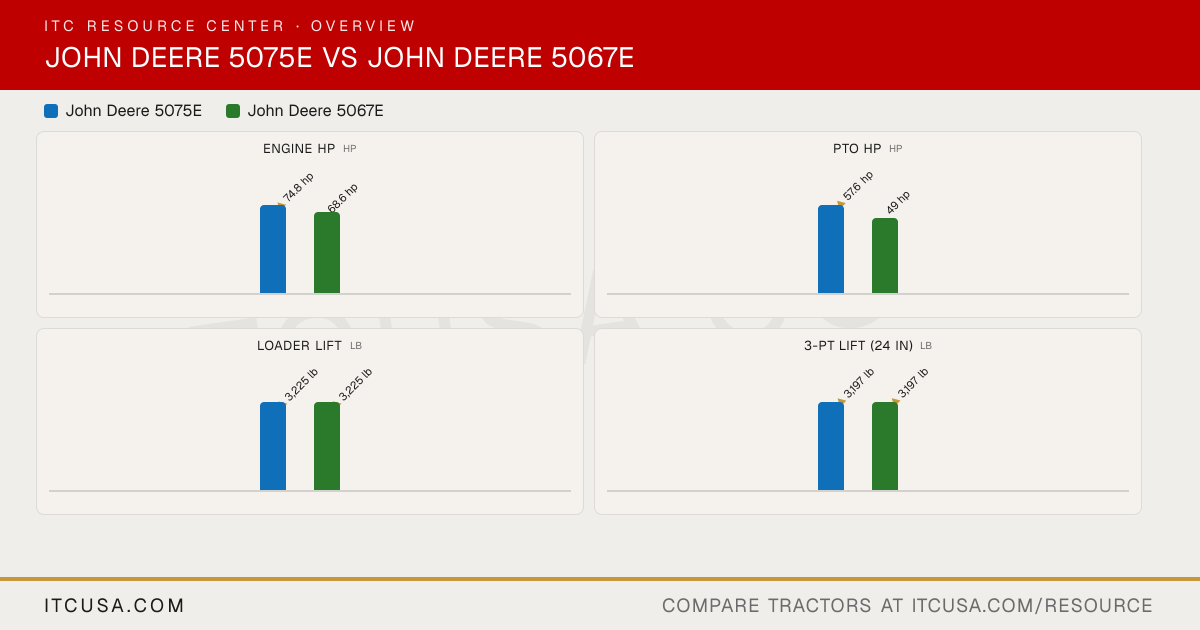

▶ EnginePTO Power 57.6 hp (43.0 kW) (OOS); 57.6 hp (43.0 kW) (Cab) 49 hp (36.6 kW) (OOS); 49 hp (36.6 kW) (Cab) Alternator 12 V, 60 A (OOS); 12 V, 110 A (Cab) 12 V, 60 A (OOS); 12 V, 110 A (Cab) Air Cleaner Dry type air cleaner with safety element Dry type with safety element Engine Type Diesel, turbocharged and aftercooled Diesel, turbocharged and aftercooled Fuel System Electronically controlled, high-pressure common rail Electronically controlled, high-pressure common rail Displacement 179 in³ (2,933 cc) 179 in³ (2,933 cc) No. of Cylinders 3 3 Rated Engine Speed 2100 rpm 2100 rpm Cooling System Type Liquid-cooled Liquid cooled with overflow reservoir Engine Manufacturer John Deere PowerTech™ 3029 EWR John Deere PowerTech™ 3029 EWR Engine Emissions Constraints EPA Final Tier 4 Final Tier 4 (EGR + DOC) Engine Power (Gross vs. Net HP) Gross: 74.8 hp (55.0 kW) @2100 rpm (97/68/EC) Gross: 68.6 hp (50.4 kW) @ 2100 rpm (SAE gross flywheel power) ▶ WeightTractor Weight with Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published Weight with ROPS and Loader Not Published Not Published ▶ HydraulicsPump Type Tandem gear pump (implement + steering) Tandem gear pump (implement + steering) Steering Flow 25.7 L/min (6.8 gpm) 25.7 L/min (6.8 gpm) Implement Flow 43.1 L/min (11.4 gpm) 43.1 L/min (11.4 gpm) Total Hydraulic Flow 68.8 L/min (18.2 gpm) 68.8 L/min (18.2 gpm) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 43.1 L/min (11.4 gpm) at a single rear SCV 43.1 L/min (11.4 gpm) at a single rear SCV Overall Hydraulic Pump Flow 68.8 L/min (18.2 gpm) 68.8 L/min (18.2 gpm) No. of Optional Remote Valves 2 2 No. of Standard Remote Valves 1 1 ▶ Tire OptionsR3 Turf - Rear 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R3 Turf - Front 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Tire Size & Options R1 Ag / R3 Turf / R4 Industrial / Snow R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial - Rear 17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 R4 Industrial - Front 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R1 Agricultural - Rear 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W R1 Agricultural - Front 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W ▶ Pto & HitchPTO Rear 540 @ 2083 engine rpm; 540E @ 1588 engine rpm 540 @ 2083 engine rpm; 540E @ 1588 engine rpm PTO Type Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Lift Control Type Position and draft control; adjustable rate of drop Position and draft control; adjustable rate of drop Hitch Lift Capacity 3,968 lb (1,800 kg) @ hitch points 3,968 lb (1,800 kg) @ hitch points Mid-PTO Availability Not Applicable Not Applicable Category, 3-Point Hitch Category II; convertible to Category I Category II; convertible to Category I Hitch Lift Capacity (at 24”) 3,197 lb (1,450 kg) @ 24 in behind hitch balls 3,197 lb (1,450 kg) @ 24 in behind hitch balls Rear 3-Point Hitch Lift Capacity 3,968 lb (1,800 kg) @ hitch points 3,968 lb (1,800 kg) @ hitch points ▶ Fluid CapacityCoolant Capacity Open operator station: 2.85 gal (13 L); Cab: 3.08 gal (14 L) Open operator station: 2.85 gal (13 L); Cab: 3.08 gal (14 L) Crankcase Capacity 9.0 qt (8.5 L) (with filter) 9.0 qt (8.5 L) (with filter) Fuel Tank Capacity Open operator station: 15.6 ± 0.44 gal (71 ± 2 L); Cab: 17.59 ± 0.44 gal (80 ± 2 L) Open operator station: 15.6 ± 0.44 gal (71 ± 2 L); Cab: 17.59 ± 0.44 gal (80 ± 2 L) Front Axle Fluid Capacity DANA: 1.18 gal (4.5 L) diff + 0.21 gal (0.8 L) per hub; Carraro: 1.03 gal (3.9 L) diff + 0.15 gal (0.6 L) per side DANA: 1.18 gal (4.5 L) diff + 0.21 gal (0.8 L) per hub; Carraro: 1.03 gal (3.9 L) diff + 0.15 gal (0.6 L) per side Transmission / Hydraulic System Capacity 8.36 gal (38 L) (9x3); 9.46 gal (43 L) (12x12) 8.36 gal (38 L) (9x3); 9.46 gal (43 L) (12x12) ▶ Loader & AttachmentsLoader Lift Height 124 in (3,150 mm) 124 in (3,150 mm) Loader Breakout Force 4,354 lb (1,975 kg) (measured at pivot) 4,354 lb (1,975 kg) (measured at pivot) Price for Backhoe Option Not Published Not Published Price for Mid-Mount Mower Not Published Not Published Quick Attach Loader System Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Loader Lift Capacity (Full Height) 3,225 lb (1,463 kg) (measured at pivot) 3,225 lb (1,463 kg) (measured at pivot) ▶ Transmission & DrivetrainClutch Dual clutch, 11 in (PowrReverser) Dual clutch, 11 in (PowrReverser) No. of Speeds 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) Transmission Type SyncShuttle™ 9F/3R (standard); PowrReverser™ 12F/12R (optional) SyncShuttle™ 9F/3R (standard); PowrReverser™ 12F/12R (optional) Max Travel Speed (Forward) 15.5 mph (25.0 km/h) (SyncShuttle); 20.5 mph (32.9 km/h) (PowrReverser) 15.5 mph (25.0 km/h) (SyncShuttle); 20.5 mph (32.9 km/h) (PowrReverser) Max Travel Speed (Reverse) 14.2 mph (22.8 km/h) (SyncShuttle); 22.3 mph (36.0 km/h) (PowrReverser) 14.2 mph (22.8 km/h) (SyncShuttle); 22.3 mph (36.0 km/h) (PowrReverser) Differential Lock & Limited Slip Options Mechanical differential lock (pedal) Mechanical differential lock (pedal) ▶ Chassis Steering & ControlsBrakes Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting) Hydraulically actuated wet disk brakes (oil-immersed) Steering Hydrostatic power steering Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type 2WD (standard) or MFWD (optional) 2WD (standard) or MFWD (optional) Drawbar Capacity 1,675 lb (760 kg) (fully extended); 2,470 lb (1,120 kg) (short position) 1,675 lb (760 kg) (fully extended); 2,470 lb (1,120 kg) (short position) Front Axle Rating Up to 9,612 lb (4,360 kg) (max permissible MFWD axle load w/ loader; varies by tire) Up to 9,612 lb (4,360 kg) (max permissible MFWD axle load w/ loader; varies by tire) Seat Suspension & Adjustability Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment ▶ Dimensions & ManeuverabilityWheelbase 80.7 in (2,050 mm) 80.7 in (2,050 mm) Overall Width Not Published Not Published Ground Clearance Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of Cab Model Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 137.8 in (3,500 mm) (2WD); 183.1 in (4,650 mm) (4WD) 137.8 in (3,500 mm) (2WD); 183.1 in (4,650 mm) (4WD) Overall Length with 3-Point Hitch 143.3 in (3,639 mm) 143.3 in (3,639 mm) ▶ Pricing Financing & WarrantyFinancing Options 0% APR fixed rate for 60 months 0% APR fixed rate for 60 months Base Price with Loader Not Published Not Published Warranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) Base Price with Loader + Cab Not Published Not Published ▶ SourcesSpec sheet sources [1] deere.com [2] johndeere.widen.net [3] deere.com [1] deere.com [2] johndeere.widen.net [3] deere.com
