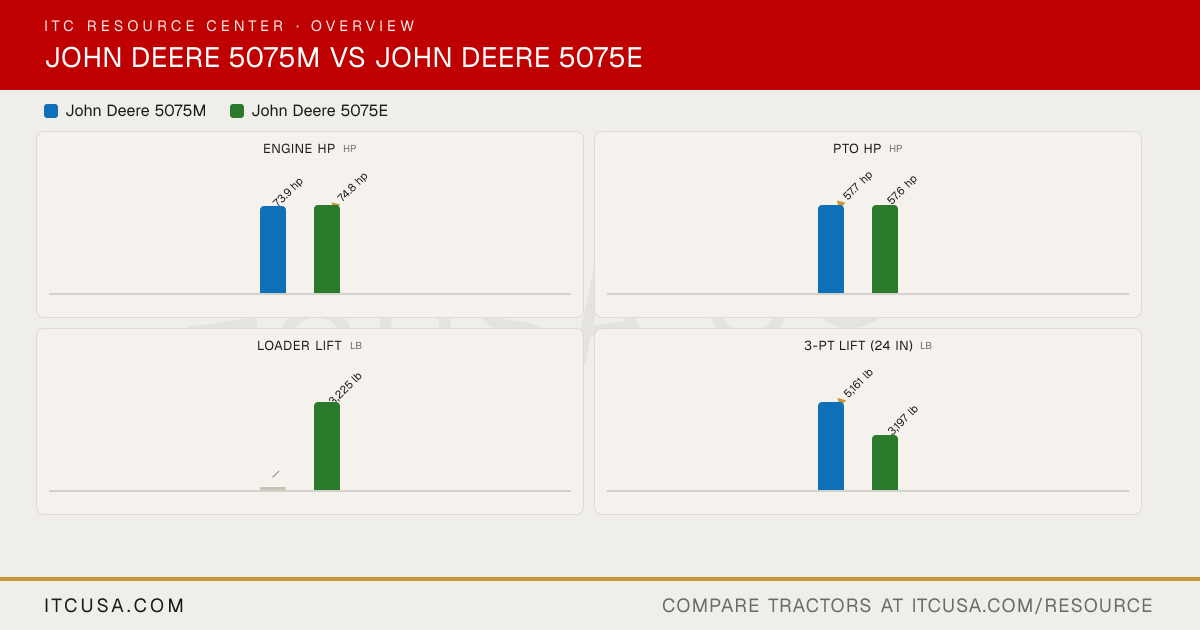

▶ EnginePTO Power 57.7 hp (43 kW) @2100 rpm (SAE) 57.6 hp (43.0 kW) (OOS); 57.6 hp (43.0 kW) (Cab) Alternator OOS: 90 A; Cab: 120 A; Field Installed Option: 200 A 12 V, 60 A (OOS); 12 V, 110 A (Cab) Air Cleaner Dry air cleaner Dry type air cleaner with safety element Engine Type Diesel, turbocharged and air-to-air aftercooled Diesel, turbocharged and aftercooled Fuel System High Pressure Common Rail (HPCR) electronic fuel injection Electronically controlled, high-pressure common rail Displacement 177 in³ (2,900 cc) 179 in³ (2,933 cc) No. of Cylinders 3 3 Rated Engine Speed 2200 rpm 2100 rpm Cooling System Type Not Published Liquid-cooled Engine Manufacturer John Deere PowerTech™ 3029 EWR John Deere PowerTech™ 3029 EWR Engine Emissions Constraints EPA Final Tier 4 (DOC/DPF) EPA Final Tier 4 Engine Power (Gross vs. Net HP) Gross: 73.9 hp (55 kW) @2200 rpm (97/68/EC) Gross: 74.8 hp (55.0 kW) @2100 rpm (97/68/EC) ▶ WeightTractor Weight with Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published Weight with ROPS and Loader Not Published Not Published ▶ HydraulicsPump Type Tandem Gear Tandem gear pump (implement + steering) Steering Flow 24 L/min (6.3 gpm) 25.7 L/min (6.8 gpm) Implement Flow 70 L/min (18.4 gpm) 43.1 L/min (11.4 gpm) Total Hydraulic Flow 94 L/min (24.7 gpm) 68.8 L/min (18.2 gpm) Hydraulic System Type Not Published Open center Rear Remote Hydraulic Flow Not Published 43.1 L/min (11.4 gpm) at a single rear SCV Overall Hydraulic Pump Flow 94 L/min (24.7 gpm) 68.8 L/min (18.2 gpm) No. of Optional Remote Valves Up to 1 additional (rear) (max 3 total) 2 No. of Standard Remote Valves 2 (rear) 1 ▶ Tire OptionsR3 Turf - Rear Not Published 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R3 Turf - Front Not Published 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Tire Size & Options R1 Ag / R3 Turf / R4 Industrial R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial - Rear Not Published 17.5L-24 8PR R4; 19.5L-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 R4 Industrial - Front Not Published 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R1 Agricultural - Rear Not Published 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W R1 Agricultural - Front Not Published 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W ▶ Pto & HitchPTO Rear 540 @2100 engine rpm; 540E @1645 engine rpm; 1000 @2100 engine rpm (if equipped) 540 @ 2083 engine rpm; 540E @ 1588 engine rpm PTO Type Independent rear PTO (wet disc clutch, electrohydraulic activation): 540/540E standard; 1000 optional Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Lift Control Type Mechanical or electrohydraulic (draft control) Position and draft control; adjustable rate of drop Hitch Lift Capacity 5,305 lb (2,406 kg) @ hitch ball (standard 65 mm cylinders); 6,114 lb (2,773 kg) optional (65 & 75 mm cylinders) 3,968 lb (1,800 kg) @ hitch points Mid-PTO Availability Not Published Not Applicable Category, 3-Point Hitch Category II (convertible to Category I) Category II; convertible to Category I Hitch Lift Capacity (at 24”) 5,161 lb (2,341 kg) @ 24 in (610 mm) behind lift point (standard); 5,958 lb (2,702 kg) optional 3,197 lb (1,450 kg) @ 24 in behind hitch balls Rear 3-Point Hitch Lift Capacity 5,305 lb (2,406 kg) @ hitch ball (standard); 6,114 lb (2,773 kg) optional 3,968 lb (1,800 kg) @ hitch points ▶ Fluid CapacityCoolant Capacity OOS: 3.6 gal (13.5 L); Cab: 4.2 gal (16 L) Open operator station: 2.85 gal (13 L); Cab: 3.08 gal (14 L) Crankcase Capacity 2.2 gal (8.5 L) 9.0 qt (8.5 L) (with filter) Fuel Tank Capacity Cab: 48.2 gal (182.6 L); OOS: 44.6 gal (169 L) Open operator station: 15.6 ± 0.44 gal (71 ± 2 L); Cab: 17.59 ± 0.44 gal (80 ± 2 L) Front Axle Fluid Capacity Differential housing (MFWD): 1.3 gal (5 L); Wheel hub (each): 0.2 gal (0.8 L) DANA: 1.18 gal (4.5 L) diff + 0.21 gal (0.8 L) per hub; Carraro: 1.03 gal (3.9 L) diff + 0.15 gal (0.6 L) per side Transmission / Hydraulic System Capacity Open center: 10.4 gal (39.5 L); Closed center: 12.5 gal (47.5 L) 8.36 gal (38 L) (9x3); 9.46 gal (43 L) (12x12) ▶ Loader & AttachmentsLoader Lift Height Not Published 124 in (3,150 mm) Loader Breakout Force Not Published 4,354 lb (1,975 kg) (measured at pivot) Price for Backhoe Option Not Published Not Published Price for Mid-Mount Mower Not Published Not Published Quick Attach Loader System Not Published Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Loader Lift Capacity (Full Height) Not Published 3,225 lb (1,463 kg) (measured at pivot) ▶ Transmission & DrivetrainClutch Not Published Dual clutch, 11 in (PowrReverser) No. of Speeds 16 forward / 16 reverse; 32 forward / 16 reverse (Hi-Lo) 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) Transmission Type PowrReverser™ 16F/16R or 32F/16R Hi-Lo SyncShuttle™ 9F/3R (standard); PowrReverser™ 12F/12R (optional) Max Travel Speed (Forward) Not Published 15.5 mph (25.0 km/h) (SyncShuttle); 20.5 mph (32.9 km/h) (PowrReverser) Max Travel Speed (Reverse) Not Published 14.2 mph (22.8 km/h) (SyncShuttle); 22.3 mph (36.0 km/h) (PowrReverser) Differential Lock & Limited Slip Options Not Published Mechanical differential lock (pedal) ▶ Chassis Steering & ControlsBrakes Hydraulically actuated wet disc brakes Hydraulically actuated wet disk brakes (self-equalizing and self-adjusting) Steering Not Published Hydrostatic power steering Frame Type Not Published Not Published Front Axle Type MFWD 2WD (standard) or MFWD (optional) Drawbar Capacity Not Published 1,675 lb (760 kg) (fully extended); 2,470 lb (1,120 kg) (short position) Front Axle Rating 6,613 lb (3,000 kg) max permissible front axle load Up to 9,612 lb (4,360 kg) (max permissible MFWD axle load w/ loader; varies by tire) Seat Suspension & Adjustability Not Published Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment ▶ Dimensions & ManeuverabilityWheelbase 92.5 in (2,350 mm) 80.7 in (2,050 mm) Overall Width 74.0 in (1,880 mm) (without fender extension); 85.6 in (2,175 mm) (with fender extension) Not Published Ground Clearance Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of Cab Model 105.3 in (2,677 mm) Not Published Height to Top of ROPS (folded) Not Published Not Published Min. Turn Radius without Brakes 157.5 in (4,000 mm) 137.8 in (3,500 mm) (2WD); 183.1 in (4,650 mm) (4WD) Overall Length with 3-Point Hitch Cab overall length: 157.3 in (3,996 mm) 143.3 in (3,639 mm) ▶ Pricing Financing & WarrantyFinancing Options 0% APR fixed rate for 60 months 0% APR fixed rate for 60 months Base Price with Loader Not Published Not Published Warranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) Base Price with Loader + Cab Not Published Not Published ▶ SourcesSpec sheet sources [1] deere.com [2] manuals.deere.com [3] johndeere.widen.net [1] deere.com [2] johndeere.widen.net [3] deere.com
