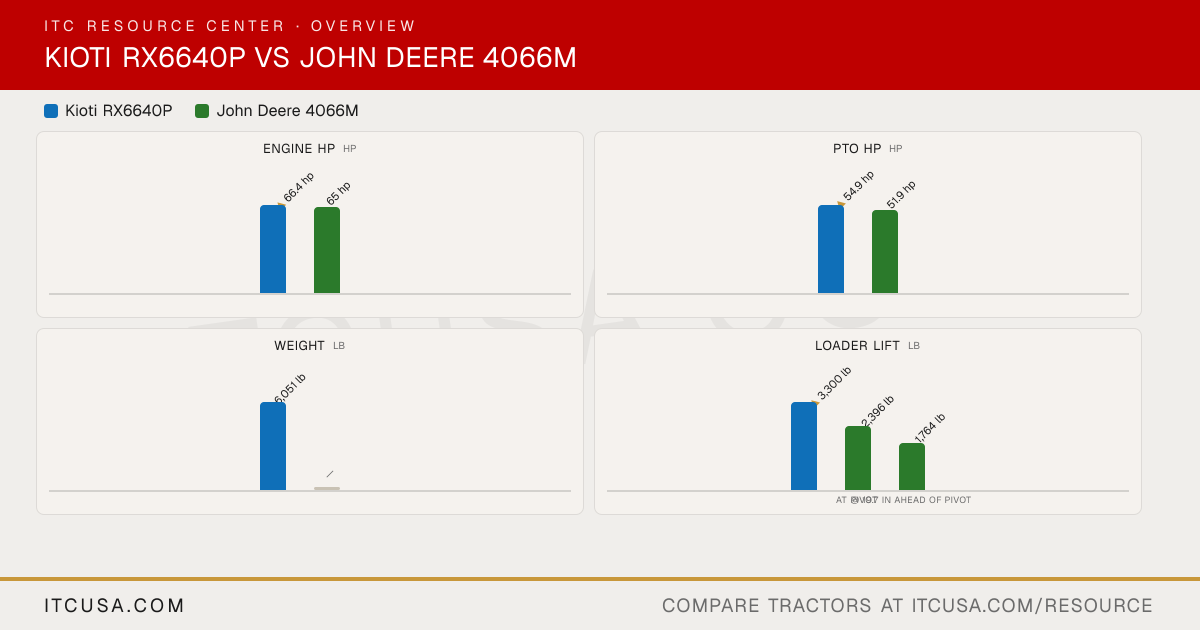

▶ EnginePTO Power 54.9 hp (40.9 kW) 51.9 hp (38.7 kW) (manufacturer’s estimated) Alternator Not Published 12 V, 75 A Air Cleaner Not Published Dual element (dry type with safety element) Engine Type In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4H243T) Diesel Fuel System Common Rail Direct Injection (CRDI) High-pressure common rail direct injection Displacement 148.6 in³ (2,435 cc) 127.6 in³ (2091 cc) No. of Cylinders 4 4 Rated Engine Speed 2,600 rpm 2600 rpm Cooling System Type Water-cooled Liquid (water pump) Engine Manufacturer KIOTI Yanmar Engine Emissions Constraints Tier 4 Final Tier 4 Engine Power (Gross vs. Net HP) Gross: 66.4 hp (49.5 kW) Gross: 65 hp (48.5 kW) @ 2600 rpm (SAE J1995); Net: Not Published ▶ WeightTractor Weight with Loader 6,051 lb (2,745 kg) Not Published Weight with Cab and Loader Not Applicable Not Applicable Weight with ROPS and Loader 6,051 lb (2,745 kg) Not Published ▶ HydraulicsPump Type Tandem Gear Dual gear Steering Flow 31.2 L/min (8.2 gpm) 21.5 L/min (5.7 gpm) Implement Flow 46.8 L/min (12.4 gpm) 38.7 L/min (10.2 gpm) Total Hydraulic Flow 78.0 L/min (20.6 gpm) 65.8 L/min (17.4 gpm) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 78.0 L/min (20.6 gpm) 65.8 L/min (17.4 gpm) No. of Optional Remote Valves 1 Up to 6 rear remotes No. of Standard Remote Valves 1 Not Published ▶ Tire OptionsR3 Turf - Rear Not Applicable 44X18.00-20 (4PR) R3 Turf - Front Not Applicable 27X10.50-15 Tire Size & Options R1 Agricultural, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R4 Industrial - Rear 18.4-24/8 420/85D24 R4 Industrial - Front 12.5/80-18 260/70D16.5 R1 Agricultural - Rear 16.9-30 13.6-28 (6PR) or 380/70R28 or 360/80R28 R1 Agricultural - Front 11.2-24 8.00-16 (10PR) or 280/70R16 or 250/75R16 ▶ Pto & HitchPTO Rear 540 / 540E rpm 540 rpm PTO Type Independent Independent (electrohydraulic) Lift Control Type Electronic Control Position control Hitch Lift Capacity 5,584.3 lb (2,533 kg) 3,130 lb (1,420 kg) Mid-PTO Availability Not Applicable Available Category, 3-Point Hitch Category II Category 1 (limited) Hitch Lift Capacity (at 24”) 4,327.7 lb (1,963 kg) 2,500 lb (1,134 kg) Rear 3-Point Hitch Lift Capacity 5,584.3 lb (2,533 kg) 3,130 lb (1,420 kg) ▶ Fluid CapacityCoolant Capacity 2.51 gal (9.5 L) Open station: 6.8 qt (6.4 L); Cab: 8.0 qt (7.6 L) (if equipped) Crankcase Capacity 2.83 gal (10.7 L) 5.6 qt (5.3 L) (with filter) Fuel Tank Capacity 26.40 gal (100 L) Open station: 15.0 gal (56.9 L); Cab: 14.7 gal (55.6 L) (if equipped) Front Axle Fluid Capacity 2.60 gal (10 L) 5.3 qt (5.0 L) Transmission / Hydraulic System Capacity 11.75 gal (44.5 L) 12.5 gal (47.3 L) ▶ Loader & AttachmentsLoader Lift Height 127.1 in (3,229.0 mm) (to pivot pin) 112.1 in (2,850 mm) Loader Breakout Force 5,875.3 lb (2,665.0 kg) (at pivot pins) At pivot: 3,853 lbf (1,743.7 kgf); @ 500 mm ahead of pivot: 2,902 lbf (1,315.4 kgf) Price for Backhoe Option Not Applicable Not Published Price for Mid-Mount Mower Not Applicable Not Published Quick Attach Loader System Built-in parking stand; designed to be quickly and easily attached and detached. Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable) Loader Lift Capacity (Full Height) 3,300.0 lb (1,497.0 kg) (to full height at pivot pins) At pivot: 2,396 lb (1,087 kg); @ 500 mm ahead of pivot: 1,764 lb (800 kg) ▶ Transmission & DrivetrainClutch Wet Disc Wet; wet clutch disk diameter 5.08 in (129 mm) No. of Speeds 12 forward / 12 reverse PowrReverser: 12F/12R; eHydro: Infinitely-variable, 3 range Transmission Type Manual: Power Shuttle Standard: 12/12 PowrReverser (PRT); Optional: eHydro (eHST), 3-range hydrostatic Max Travel Speed (Forward) 22.01 mph (35.43 km/h) 18.6 mph (30 km/h) Max Travel Speed (Reverse) 21.92 mph (35.28 km/h) 18.6 mph (30 km/h) Differential Lock & Limited Slip Options Rear differential lock (standard) Differential lock: Yes ▶ Chassis Steering & ControlsBrakes Wet Multi Disc Multi-plate wet disc Steering Hydrostatic Power Steering Hydrostatic power steering Frame Type Not Published ROPS - Fixed Front Axle Type Not Published Mechanical front wheel drive (MFWD) - Standard; engagement On-the-Go Drawbar Capacity Not Published Max vertical load 500 kg (1103 lb) Front Axle Rating Not Published (Continuous) 1500 kg (3307 lb) Seat Suspension & Adjustability Mechanical Suspension Seat Optional mechanical suspension seat; adjustable weight 52–125 kg (115–275 lb); fore/aft adjustment; flips forward ▶ Dimensions & ManeuverabilityWheelbase 85.40 in (2,170 mm) 73.0 in (1,855 mm) Overall Width 82.10 in (2,085 mm) 78.2 in (1,986 mm) Ground Clearance 15.70 in (400 mm) Front axle: 15.6 in (395.1 mm); Drawbar support: 14.8 in (377 mm) Height to Top of ROPS 114.80 in (2,917 mm) 93.7 in (2,380 mm) Height to Top of Cab Model Not Applicable Not Applicable Height to Top of ROPS (folded) Not Published 69.5 in (1,766 mm) Min. Turn Radius without Brakes 12.80 ft (3.90 m) 17.1 ft (5.2 m) Overall Length with 3-Point Hitch 150.30 in (3,817 mm) 130.6 in (3,317 mm) ▶ Pricing Financing & WarrantyFinancing Options RX Series: up to $4,000 cash offer; 0% up to 36 months; 6.99% interest rate (offers subject to change). 0% APR fixed rate for 48 months Base Price with Loader Tractor Starting MSRP $46,689 + Front End Loader KL7340 $10,812 = $57,501 MSRP Not Published Warranty Length & Coverage Tractors (Non-Commercial Application): 24 months parts & labor; Extended (Non-Commercial, driveline/powertrain): 48 months parts & labor; Limited time: eligible units receive total 6 years (72 months) extended powertrain warranty coverage. 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) Base Price with Loader + Cab Not Applicable Not Applicable ▶ SourcesSpec sheet sources [1] kioti.com [2] kioti-api.files.svdcdn.com [3] kioti-api.files.svdcdn.com [4] kioti.com [1] deere.com [2] explore.deere.com [3] deere.com
