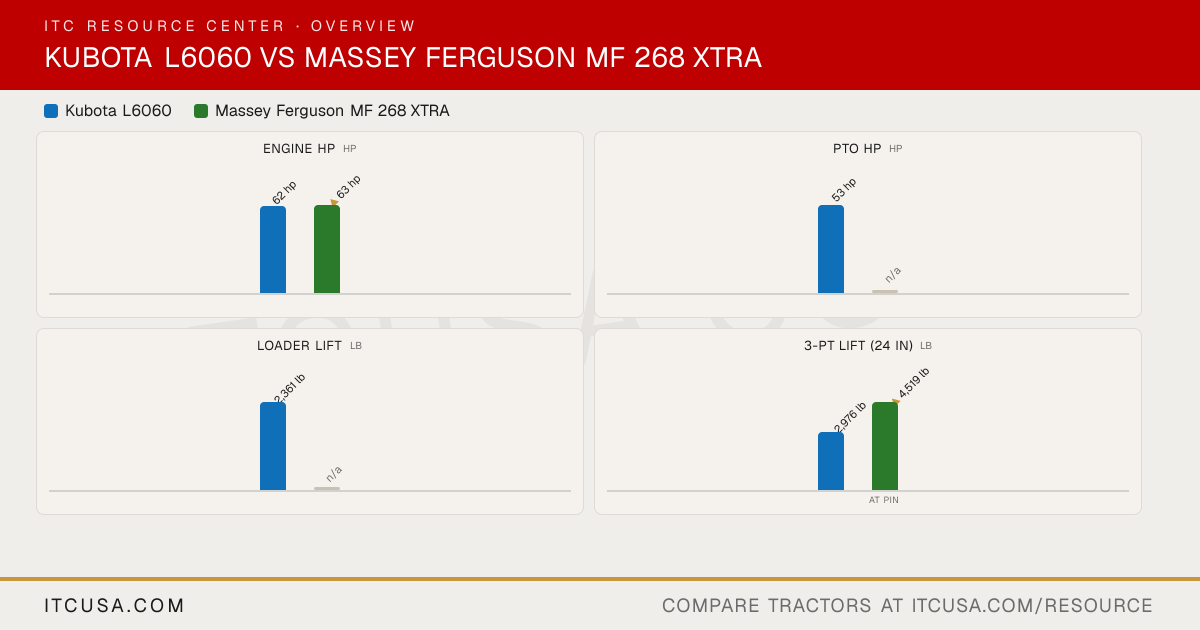

▶ EnginePTO Power 53.0 hp (39.5 kW) Not Published Alternator HST (4WD): 12 V, 45 A; HSTC (4WD, CAB): 12 V, 60 A Not Published Air Cleaner Dry paper, dual element Dry Type / Oil Bath Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged 4-cylinder diesel Fuel System Electronic Common Rail System (CRS) Not Published Displacement 148.5 in³ (2,434 cc) 219.7 in³ (3,600 cc) No. of Cylinders 4 4 Rated Engine Speed 2600 rpm 2,200 rpm Cooling System Type Liquid-cooled Not Published Engine Manufacturer Kubota Simpson Engine Emissions Constraints EPA Tier 4 Final (DPF muffler + EGR) Not Published Engine Power (Gross vs. Net HP) Gross: 62.0 hp (46.3 kW); Net: 60.0 hp (44.8 kW) 63 hp (47 kW) ▶ WeightTractor Weight with Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published Weight with ROPS and Loader Not Published Not Published ▶ HydraulicsPump Type Tandem pump - gear type Scotch yoke pump (rear axle mounted) Steering Flow 4.7 gpm (17.9 L/min) 20 L/min (5.3 gpm) Implement Flow 9.4 gpm (35.6 L/min) 18 L/min (4.8 gpm) Total Hydraulic Flow 14.1 gpm (53.5 L/min) 38 L/min (10.0 gpm) Hydraulic System Type Open center Open centre Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 14.1 gpm (53.5 L/min) 38 L/min (10.0 gpm) No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) Not Published No. of Standard Remote Valves Not Published Not Published ▶ Tire OptionsR3 Turf - Rear 44X18-20 Not Published R3 Turf - Front 29X12.50-15 Not Published Tire Size & Options Standard R1; Option 1 R4; Option 2 R3; LSW option (R3) R1 Agricultural R4 Industrial - Rear 17.5L-24 Not Published R4 Industrial - Front 10-16.5 Not Published R1 Agricultural - Rear 14.9-26; 13.6-28 16.9X28 R1 Agricultural - Front 9.5-16 2WD: 7.50X16; 4WD: 9.5X24 ▶ Pto & HitchPTO Rear 540 rpm @ 2400 engine rpm 540 rpm PTO Type Live independent (hydraulic clutch) Live PTO Lift Control Type Position control Ferguson System Hitch Lift Capacity 3,858 lb 4,519 lb (2,050 kg) Mid-PTO Availability Optional Not Published Category, 3-Point Hitch SAE Category 1 & 2 Not Published Hitch Lift Capacity (at 24”) 2,976 lb Not Published Rear 3-Point Hitch Lift Capacity 3,858 lb 4,519 lb (2,050 kg) ▶ Fluid CapacityCoolant Capacity 8.7 qt Not Published Crankcase Capacity 9.9 qt Not Published Fuel Tank Capacity 13.5 gal 15.9 gal (60 L) Front Axle Fluid Capacity Not Published Not Published Transmission / Hydraulic System Capacity 11.9 gal Not Published ▶ Loader & AttachmentsLoader Lift Height 112.7 in (2862 mm) Not Published Loader Breakout Force 3171 lb (14107 N) Not Published Price for Backhoe Option BH92: $11,078 MSRP Not Published Price for Mid-Mount Mower Not Published Not Published Quick Attach Loader System Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Not Published Loader Lift Capacity (Full Height) 2361 lb (1071 kg) Not Published ▶ Transmission & DrivetrainClutch N/A Dual Dry Plate No. of Speeds 3-range, 6 speeds (H-DS), infinitely variable in each 8F / 2R Transmission Type Hydrostatic transmission Sliding mesh gearbox Max Travel Speed (Forward) 16.8 mph 18.6 mph (30 km/h) Max Travel Speed (Reverse) 15.2 mph Not Published Differential Lock & Limited Slip Options Rear differential lock, standard Mechanical differential lock (foot pedal) ▶ Chassis Steering & ControlsBrakes Wet disc type, mechanically activated Oil immersed, mechanical actuation Steering Hydrostatic power steering Hydrostatic Frame Type Not Published Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Not Published Drawbar Capacity 1,433 lbs. Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Not Published ▶ Dimensions & ManeuverabilityWheelbase 75.4 in (1915 mm) 80.7 in (2,050 mm) Overall Width 67.3 in (1709 mm) Not Published Ground Clearance 15.4 in (391 mm) Not Published Height to Top of ROPS HST (4WD): 98.0 in (2489 mm); HSTC (4WD, CAB): Not Applicable 99.2 in (2,520 mm) Height to Top of Cab Model HST (4WD): Not Applicable; HSTC (4WD, CAB): 92.5 in (2350 mm) Not Published Height to Top of ROPS (folded) HST (4WD): 92.5 in (2350 mm); HSTC (4WD, CAB): Not Applicable Not Published Min. Turn Radius without Brakes 9.2 ft (2.8 m) Not Published Overall Length with 3-Point Hitch 135.0 in (3429 mm) 153.1 in (3,890 mm) ▶ Pricing Financing & WarrantyFinancing Options Check with your local dealer for the best offer. 0% for up to 60 Months* (Offer valid through February 28, 2026) Base Price with Loader HST (4WD): Tractor Starting MSRP $44,440 + LA1055 $6,710 = $51,150 MSRP; HSTC (4WD, CAB): Tractor Starting MSRP $54,848 + LA1055 $6,710 = $61,558 MSRP Not Published Warranty Length & Coverage Non-Commercial Home & Residential Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use — Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Not Published Base Price with Loader + Cab HST (4WD): Not Applicable; HSTC (4WD, CAB): Tractor Starting MSRP $54,848 + LA1055 $6,710 = $61,558 MSRP Not Published ▶ SourcesSpec sheet sources [1] kubotausa.com [2] kubotausa.com [3] kubotausa.com [4] kubotausa.com [1] masseyferguson.com [2] masseyferguson.com
