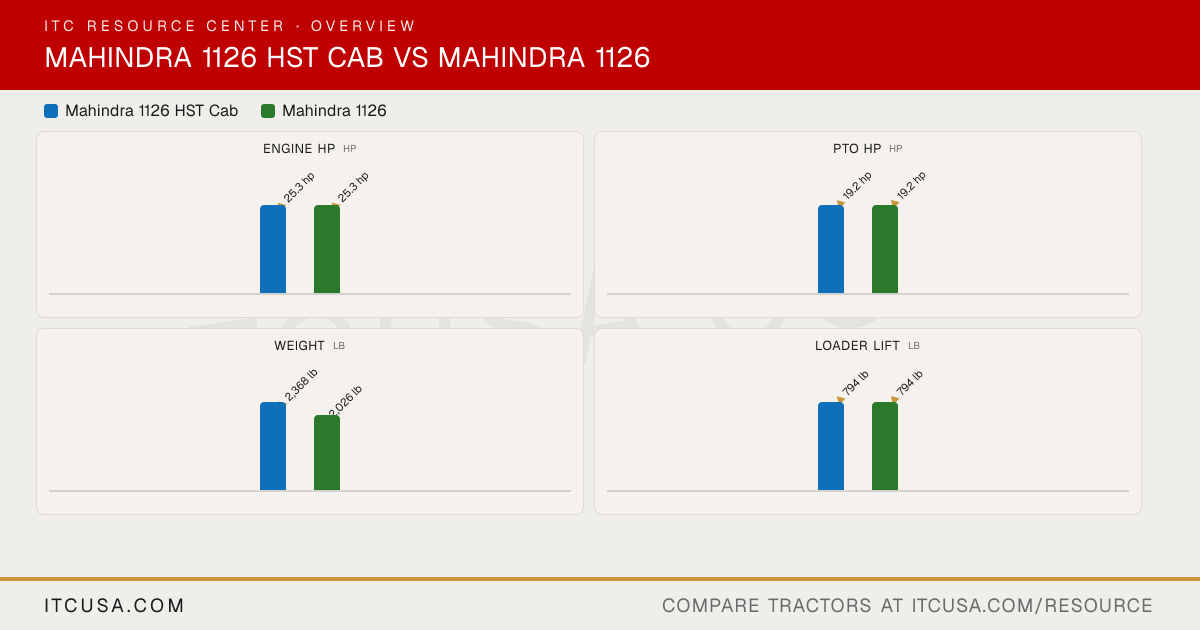

Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
No photo
—
Mahindra1126HSTCAB
No photo
—
Mahindra1126
Comparison loaded for 2 tractors.
Spec
Mahindra1126 HST CAB
Mahindra1126
PTO Power
19.2 hp (14.3 kW)
19.2 hp (14.3 kW)
Alternator
12 V, 55 A
12 V, 55 A
Air Cleaner
Not Published
Not Published
Engine Type
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Four Stroke, Naturally Aspired, Indirect Injection, Water-Cooled Diesel Engine
Fuel System
Indirect Injection
Indirect Injection
Displacement
67.2 in³ (1102 cc)
67.2 in³ (1102 cc)
No. of Cylinders
3
3
Rated Engine Speed
3000 rpm
3000 rpm
Cooling System Type
Water-Cooled
Water-Cooled
Engine Manufacturer
Mitsubishi
Mitsubishi
Engine Emissions Constraints
No DPF
No DPF
Engine Power (Gross vs. Net HP)
Gross: 25.3 hp (18.9 kW) @ 3000 rpm
Gross: 25.3 hp (18.9 kW) @ 3000 rpm
Tractor Weight with Loader
2368 lb (1074 kg)
2026 lb (919 kg)
Weight with Cab and Loader
2368 lb (1074 kg)
Not Applicable
Weight with ROPS and Loader
Not Applicable
2026 lb (919 kg)
Pump Type
Not Published
Not Published
Steering Flow
14.4 L/min (3.8 gpm)
14.4 L/min (3.8 gpm)
Implement Flow
28.7 L/min (7.6 gpm)
28.7 L/min (7.6 gpm)
Total Hydraulic Flow
43.1 L/min (11.4 gpm)
43.1 L/min (11.4 gpm)
Hydraulic System Type
Open Center, full-live hydraulic with position control
Open Center, full-live hydraulic with position control
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
43.1 L/min (11.4 gpm)
43.1 L/min (11.4 gpm)
No. of Optional Remote Valves
Single or dual
Single or dual
No. of Standard Remote Valves
Not Published
Not Published
R3 Turf - Rear
26X12-12
26X12-12
R3 Turf - Front
18X8.5-10
18X8.5-10
Tire Size & Options
R3 Turf, R4 Industrial
R3 Turf, R4 Industrial
R4 Industrial - Rear
26X12-12
26X12-12
R4 Industrial - Front
18X8.5-10
18X8.5-10
R1 Agricultural - Rear
Not Published
Not Published
R1 Agricultural - Front
Not Published
Not Published
PTO Rear
540 rpm @ 2837 rpm
540 rpm @ 2837 rpm
PTO Type
Independent Wet Clutch
Independent Wet Clutch
Lift Control Type
Position Control
Position Control
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Optional; 2500 rpm @ 2837 rpm
Optional; 2500 rpm @ 2837 rpm
Category, 3-Point Hitch
CAT I with check chains
CAT I with check chains
Hitch Lift Capacity (at 24”)
771 lb (350 kg)
771 lb (350 kg)
Rear 3-Point Hitch Lift Capacity
Not Published
Not Published
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
6.6 gal (25 L)
6.6 gal (25 L)
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
68 in (1721 mm)
68 in (1721 mm)
Loader Breakout Force
1433 lb (650 kg)
1433 lb (650 kg)
Price for Backhoe Option
Not Applicable
BHA11: $8,297
Price for Mid-Mount Mower
MQ1154: $4,122; MQ1160: $4,870
MQ1154: $4,122; MQ1160: $4,870
Quick Attach Loader System
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
L11: Skid-steer couplers (skid-steer style quick attach) for superfast hookups.
