Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
—
MasseyFergusonMF1735M
—
MasseyFergusonMF1525
Comparison loaded for 2 tractors.
Spec
Massey FergusonMF 1735 M
Massey FergusonMF 1525
PTO Power
Not Published
Not Published
Alternator
Not Published
Not Published
Air Cleaner
Not Published
Not Published
Engine Type
3-cylinder turbocharged diesel
3-cylinder diesel
Fuel System
Not Published
Not Published
Displacement
111.4 in³
91.4 in³
No. of Cylinders
3
3
Rated Engine Speed
2500 rpm
2500 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
Massey Ferguson (AGCO)
Massey Ferguson (AGCO)

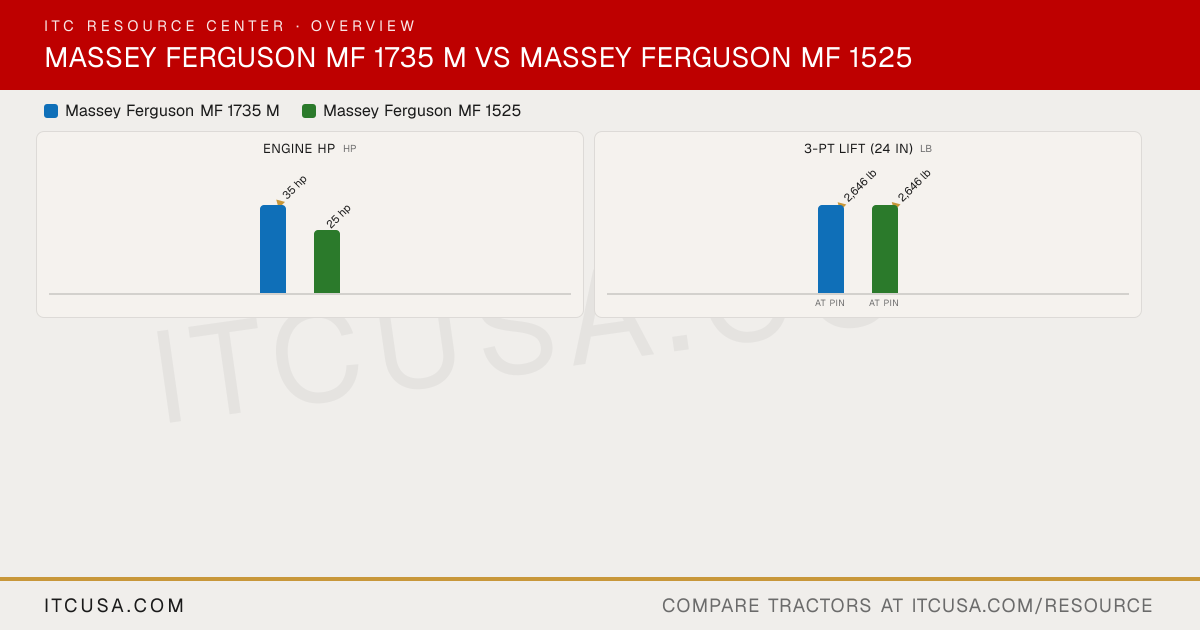

Engine Power (Gross)
35 hp
25 hp
Engine Emissions Constraints
Stage V
Not Published
Tractor Weight with Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Pump Type
Not Published
Not Published
Steering Flow
Not Published
3.2 gpm
Implement Flow
11.0 gpm
5.5 gpm
Total Hydraulic Flow
Not Published
8.7 gpm
Hydraulic System Type
Open-centre
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
8.7 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
2
2
PTO Rear
540/750 (540E) rpm
540 rpm / 750 rpm (540E)
PTO Type
Not Published
Electro-hydraulic
Lift Control Type
Not Published
Not Published
Hitch Lift Capacity
2,646 lb
2,646 lb
Mid-PTO Availability
Standard
Standard
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
Not Published
Not Published
R3 Turf - Rear
315/80D-16
315/80D-16
R3 Turf - Front
24X8.50-12
24X8.5-12
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R3 Turf
R4 Industrial - Rear
13.6-16
Not Applicable
R4 Industrial - Front
21X10.50-12
Not Applicable
R1 Agricultural - Rear
9.5-24
9.5-18
R1 Agricultural - Front
7-14
6.0-12
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
9.5 gal
9.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
Not Published
Not Published
Loader Breakout Force
Not Published
Not Published
Price for Backhoe Option
Not Published
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
Not Published
Not Published
Loader Lift Capacity (Full Height)
Not Published
Not Published
Clutch
Not Applicable
Not Applicable
No. of Speeds
Not Published
3 ranges
Transmission Type
Hydrostatic
Hydrostatic
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock
Rear differential lock
Brakes
Not Published
Not Published
Steering
Not Published
Not Published
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
CAB: 66.7 in; ROPS: 76.0 in
66.9 in
Overall Width
CAB: 55.7 in; ROPS: 53.9 in
43.3 in
Ground Clearance
Not Published
10.8 in
Height to Top of ROPS
96.7 in
Not Applicable
Height to Top of Cab Model
85.6 in
95.3 in
Height to Top of ROPS (folded)
Not Published
Not Published
Min. Turn Radius without Brakes
Not Published
Not Published
Overall Length with 3-Point Hitch
CAB: 121.7 in; ROPS: 135.0 in
115.6 in
Financing Options
0% for up to 60 Months* (Offer valid through February 28, 2026)
0% for up to 60 Months* (Offer valid through February 28, 2026)
We'll send the full side-by-side spec sheet to your inbox so you can compare offline, or share this exact comparison with a link. No marketing follow-up.
