Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
—
MasseyFergusonMF1755M
—
NewHollandWORKMASTER50

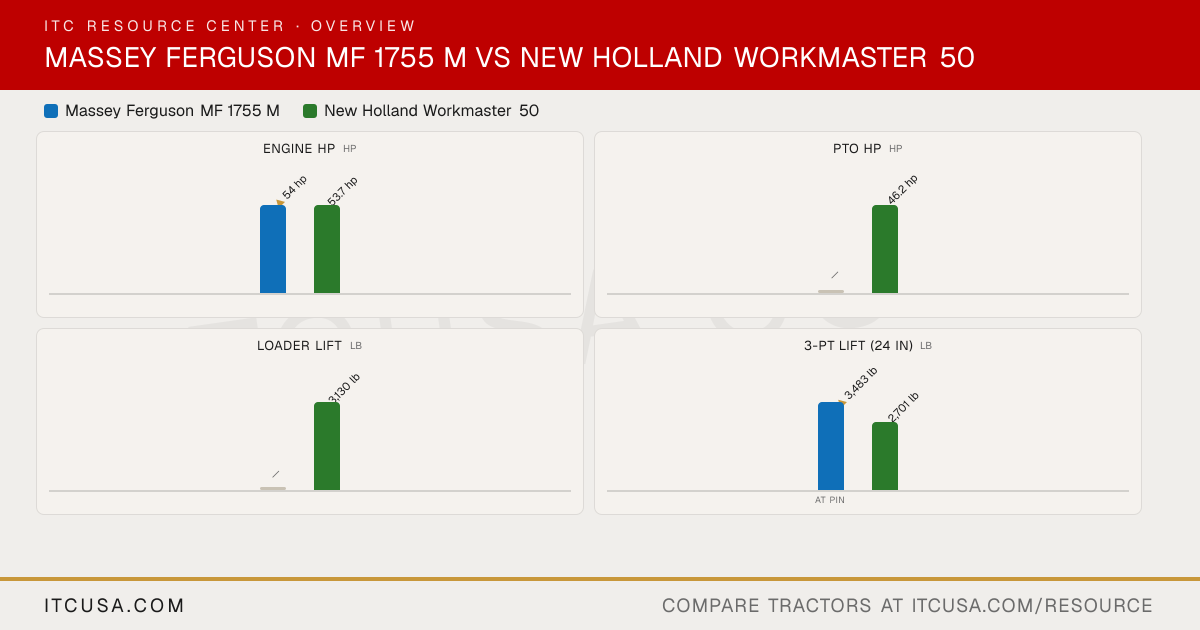

Comparison loaded for 2 tractors.
Spec
Massey FergusonMF 1755 M
New HollandWorkmaster 50
PTO Power
Not Published
46.2 hp
Alternator
Not Published
75 A, 12 V
Air Cleaner
Not Published
Inner and outer paper elements
Engine Type
4-cylinder turbocharged diesel
Turbocharged, intercooled 3-cylinder diesel
Fuel System
Not Published
CRDI
Displacement
148.5 in³
136 in³
No. of Cylinders
4
3
Rated Engine Speed
2500 rpm
2600 rpm
Cooling System Type
Not Published
Pressurized liquid with recirculating bypass
Engine Manufacturer
Massey Ferguson (AGCO)
FPT Industrial
Engine Power (Gross)
54 hp
53.7 hp
Engine Emissions Constraints
Stage V
Tier 4
Tractor Weight with Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Pump Type
Not Published
Open-center; dual pumps
Steering Flow
Not Published
5.5 gpm
Implement Flow
12.7 gpm
12 gpm
Total Hydraulic Flow
Not Published
17.5 gpm
Hydraulic System Type
Open-centre
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
17.5 gpm
No. of Optional Remote Valves
Not Published
2
No. of Standard Remote Valves
2
1
PTO Rear
540/750 (540E) rpm
540 rpm
PTO Type
Not Published
Independent
Lift Control Type
Not Published
Not Published
Hitch Lift Capacity
3,483 lb
3,307 lb at ball ends
Mid-PTO Availability
Standard
Not Applicable
Category, 3-Point Hitch
Category I
Category II/I
Hitch Lift Capacity (at 24”)
Not Published
2,701 lb
R3 Turf - Rear
475/65D-20
Not Published
R3 Turf - Front
29X12.00-15
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural, R4 Industrial
R4 Industrial - Rear
420/70R24
18.4X24R4
R4 Industrial - Front
280/70R16
12.5X18
R1 Agricultural - Rear
13.6-28
13.6X28R1, 6 ply; 14.9X28R1, 6 ply
R1 Agricultural - Front
9.5-16
8.3X24, 6 ply
Coolant Capacity
Not Published
10.6 qt
Crankcase Capacity
Not Published
6.7 qt
Fuel Tank Capacity
14.0 gal
17.2 gal
Front Axle Fluid Capacity
Not Published
8.0 qt
Transmission / Hydraulic System Capacity
Not Published
6.6 gal
Loader Lift Height
Not Published
Up to 122 in
Loader Breakout Force
Not Published
Up to 3,527 lb
Price for Backhoe Option
Not Published
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
Not Published
600TL: Front loader (quick-attach design)
Loader Lift Capacity (Full Height)
Not Published
Up to 3,130 lb
Clutch
Not Published
LUK, 11 in
No. of Speeds
12F / 12R
8F/8R
Transmission Type
Mechanical
8x8 synchronized shuttle
Max Travel Speed (Forward)
Not Published
19.8 mph
Max Travel Speed (Reverse)
Not Published
20.9 mph
Differential Lock & Limited Slip Options
Differential lock
Rear differential lock (pedal)
Brakes
Not Published
Wet disc
Steering
Not Published
Power
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
6,500 lb dynamic capacity
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
78.3 in
77.2 in
Overall Width
62.4-68.7 in (1,585-68.7 in)
67.5 in
Ground Clearance
Not Published
15.9 in
Height to Top of ROPS
Not Published
97.6 in
Height to Top of Cab Model
92.3 in
105.4 in
Height to Top of ROPS (folded)
Not Published
77.0 in
Min. Turn Radius without Brakes
Not Published
190.9 in
Overall Length with 3-Point Hitch
139.6 in
134.0 in
