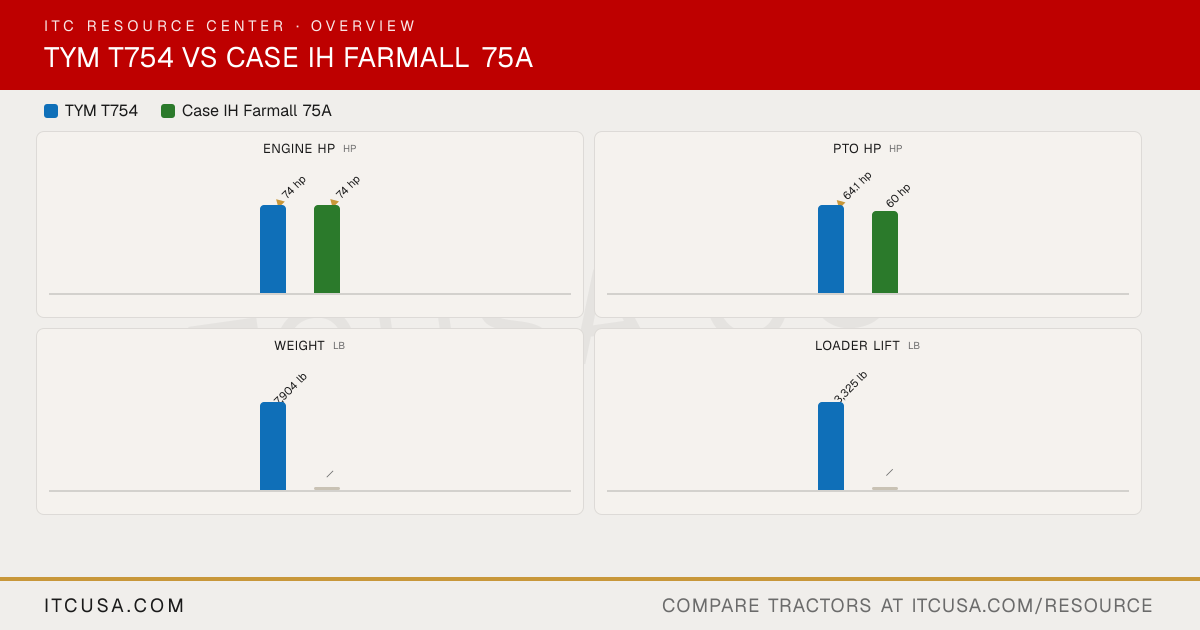

Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
No photo
—
TYMT754
No photo
—
CaseIHFARMALL75A
Comparison loaded for 2 tractors.
Spec
TYMT754
Case IHFARMALL 75A
PTO Power
64.1 hp (47.8 kW)
60 hp
Alternator
12 V, 95 A
Not Published
Air Cleaner
Dual dry
Not Published
Engine Type
4-cylinder, turbocharged diesel
Diesel, turbocharged
Fuel System
CRDI
Not Published
Displacement
177 in³ (2,900 cc)
2.9 L
No. of Cylinders
4
3
Rated Engine Speed
2,200 rpm
2,300 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
Deutz
FPT Industrial
Engine Emissions Constraints
Diesel Oxidation Catalyst (DOC)
Tier 4 B/Final
Engine Power (Gross vs. Net HP)
Gross: 74 hp (55.4 kW)
74 hp
Tractor Weight with Loader
7,904 lb (3,585 kg)
Not Published
Weight with Cab and Loader
7,904 lb (3,585 kg)
Not Published
Weight with ROPS and Loader
Not Applicable
Not Published
Pump Type
Dual gear pump
Not Published
Steering Flow
22.0 L/min (5.8 gpm)
Not Published
Implement Flow
39.1 L/min (10.3 gpm)
47.7 L/min (12.6 gpm)
Total Hydraulic Flow
61.1 L/min (16.1 gpm)
Not Published
Hydraulic System Type
Not Published
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
61.1 L/min (16.1 gpm)
Not Published
No. of Optional Remote Valves
Not Published
3
No. of Standard Remote Valves
2
2
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Not Published
R4 Industrial - Rear
Xtra Grip 18.4-24 NHS TL 8PR
Not Published
R4 Industrial - Front
Trac Chief 15-19.5 NHS TL 6PR
Not Published
R1 Agricultural - Rear
FSTR 420/85R30 TL (16.9R30)
Not Published
R1 Agricultural - Front
FSTR 280/85R24 TL (11R24)
Not Published
PTO Rear
540/750 rpm; 540/1,000 rpm (Opt)
540 / 540/540E
PTO Type
Independent
Not Published
Lift Control Type
Position/Draft/Elec
Mechanical Draft Control (MDC) top link sensing
Hitch Lift Capacity
5,115 lb (2,320 kg)
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II
Category 1/2
Hitch Lift Capacity (at 24”)
3,418 lb (1,550 kg)
4,299 lb (1,950 kg) (standard); 4,740 lb (2,150 kg) (optional) @ 24 in behind pin
Rear 3-Point Hitch Lift Capacity
5,115 lb (2,320 kg)
Not Published
Coolant Capacity
10.6 qt (10 L)
Not Published
Crankcase Capacity
8.5 qt (8 L)
Not Published
Fuel Tank Capacity
23.8 gal (90 L)
21.7 gal (82 L)
Front Axle Fluid Capacity
17.3 qt (16.3 L)
Not Published
Transmission / Hydraulic System Capacity
18.0 gal (68.1 L)
Not Published
Loader Lift Height
133.8 in (3,398 mm)
Not Published
Loader Breakout Force
5,485 lb (2,488 kg)
Not Published
Price for Backhoe Option
Not Published
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
TX75SL: Quick attachment (Skid/Euro type)
Not Published
Loader Lift Capacity (Full Height)
3,325 lb (1,508 kg)
Not Published
Clutch
M: Dry Single Plate; PS: Wet Multi Plate
Dry clutch (8x8 mechanical shuttle); wet clutch (12x12 power shuttle)
No. of Speeds
F16 x R16 (Creep interlock)
Not Published
Transmission Type
Synchro-shuttle
8x8 mechanical shuttle (dry clutch) (standard); 12x12 power shuttle (wet clutch) or 12x12 with creeper (optional)
81.2 in (2,063 mm) (2WD); 81.8 in (2,078 mm) (MFD)
Overall Width
76.4 in (1,940 mm)
Not Published
Ground Clearance
18.3 in (465 mm)
Not Published
Height to Top of ROPS
Not Applicable
Not Published
Height to Top of Cab Model
103.3 in (2,624 mm)
100 in (2,545 mm)
Height to Top of ROPS (folded)
Not Applicable
67.7 in (1,720 mm)
Min. Turn Radius without Brakes
162.8 in (4,135 mm)
Not Published
Overall Length with 3-Point Hitch
155.7 in (4,002 mm)
151.8 in (3,856 mm)
Financing Options
0% financing for up to 72 months and instant cash rebates. Contact dealer for more information.
Not Published
Base Price with Loader
Not Published
Not Published
Warranty Length & Coverage
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
