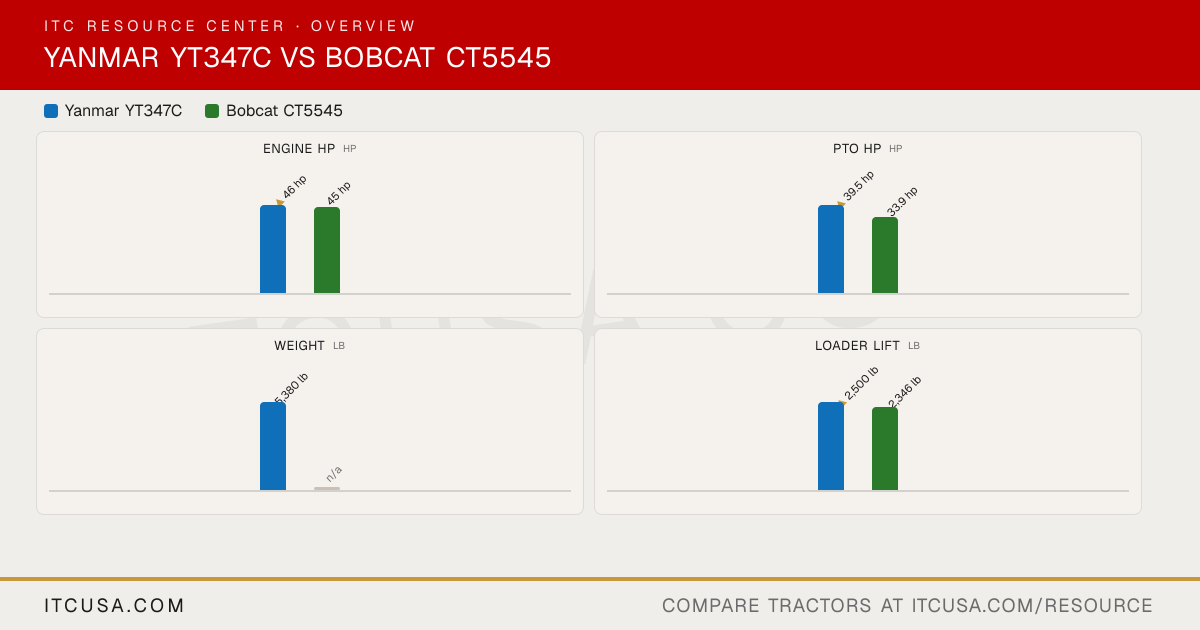

Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
No photo
—
YanmarYT347C
No photo
—
BobcatCT5545
Comparison loaded for 2 tractors.
Spec
YanmarYT347C
BobcatCT5545
PTO Power
39.5 hp (29.1 kW)
33.9 hp
Alternator
12 V, 55 A
Not Published
Air Cleaner
Dual stage cyclonic (resin 5.5")
Not Published
Engine Type
4-cylinder, naturally aspirated diesel
Diesel
Fuel System
Common rail direct injection
Not Published
Displacement
133.5 in³ (2,189 cc)
111.4 in³ (1.8 L)
No. of Cylinders
4
3
Rated Engine Speed
2,800 rpm
2,750 rpm
Cooling System Type
Liquid cooled
Not Published
Engine Manufacturer
YANMAR
Not Published
Engine Emissions Constraints
Tier 4
Not Published
Engine Power (Gross vs. Net HP)
Gross: 46 hp (34.3 kW)
45.0 hp (33.5 kW) (Gross)
Tractor Weight with Loader
5,380 lb (2,440 kg)
Not Published
Weight with Cab and Loader
5,380 lb (2,440 kg)
Not Published
Weight with ROPS and Loader
Not Applicable
Not Applicable
Pump Type
Not Published
Not Published
Steering Flow
21.7 L/min (5.7 gpm)
8.2 gpm
Implement Flow
38.3 L/min (10.1 gpm)
9.6 gpm
Total Hydraulic Flow
60.0 L/min (15.8 gpm)
67.6 L/min (17.8 gpm)
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
60.0 L/min (15.8 gpm)
67.6 L/min (17.8 gpm)
No. of Optional Remote Valves
1
2
No. of Standard Remote Valves
2
1
R3 Turf - Rear
44 x 18 - 20.0
Not Published
R3 Turf - Front
27.0 - 10.5
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
Not Published
R4 Industrial - Rear
17.5L - 24.0
Not Published
R4 Industrial - Front
10.0 - 16.5
Not Published
R1 Agricultural - Rear
14.9 - 24.0
Not Published
R1 Agricultural - Front
8.0 - 16.0
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent (electro-hydraulic)
Independent
Lift Control Type
Position control
Position with Draft Control
Hitch Lift Capacity
3,307 lb (1,500 kg)
3,177 lb (1,441 kg)
Mid-PTO Availability
Not Published
Optional: 2,103 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity (at 24”)
2,756 lb (1,250 kg)
3,177 lb (1,441 kg)
Rear 3-Point Hitch Lift Capacity
3,307 lb (1,500 kg)
3,177 lb (1,441 kg)
Coolant Capacity
6.2 qt (5.9 L)
Not Published
Crankcase Capacity
7.0 qt (6.6 L)
Not Published
Fuel Tank Capacity
12.7 gal (48 L)
14.8 gal (56 L)
Front Axle Fluid Capacity
2.4 gal (9 L)
Not Published
Transmission / Hydraulic System Capacity
7.7 gal (29 L)
Not Published
Loader Lift Height
113 in (2,870 mm)
Not Published
Loader Breakout Force
3,969 lb (1,800 kg)
Not Published
Price for Backhoe Option
B90: $17,560
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
YL610: Skid-steer-style loader quick attachment system
Not Published
Loader Lift Capacity (Full Height)
2,500 lb (1,134 kg)
2,346 lb (1,064 kg)
Clutch
Clutch-less shifting (i-HMT)
Not Applicable
No. of Speeds
3 ranges (variable speed)
Not Applicable
Transmission Type
I-HMT (Integrated Hydro Mechanical Transmission)
Infinite, 3 Range Hydrostatic (Servo control valve with Electric sol.)
Max Travel Speed (Forward)
18 mph (29 km/h)
17.5 mph (28.2 km/hr)
Max Travel Speed (Reverse)
18 mph (29 km/h)
17.5 mph (28.2 km/hr)
Differential Lock & Limited Slip Options
Rear differential lock (foot pedal engagement)
Std
Brakes
Mechanical wet disc
Wet Multi-Disc
Steering
Fully hydraulic power steering
Hydrostatic power steering
Frame Type
Not Published
Not Published
Front Axle Type
Selectable 2WD/4WD engagement
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
75.9 in (1,927 mm)
75.6 in (1,920 mm)
Overall Width
70.6 in (1,793 mm)
74.2 in (1,885 mm)
Ground Clearance
12.8 in (326 mm)
13.0 in (330 mm)
Height to Top of ROPS
Not Applicable
Not Applicable
Height to Top of Cab Model
89.5 in (2,274 mm)
94.2 in (2,393 mm)
Height to Top of ROPS (folded)
Not Published
Not Applicable
Min. Turn Radius without Brakes
Not Published
117.6 in (2,990 mm)
Overall Length with 3-Point Hitch
130.9 in (3,325 mm)
139.6 in (3,547 mm)
Financing Options
See Exclusive Offers (promotions vary)
0% for 84 months for as low as $518/month USD OR Free Front-end Loader. Offers end December 31, 2025.
Base Price with Loader
Not Applicable
$43,559 USD
Warranty Length & Coverage
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
